PRODUCT

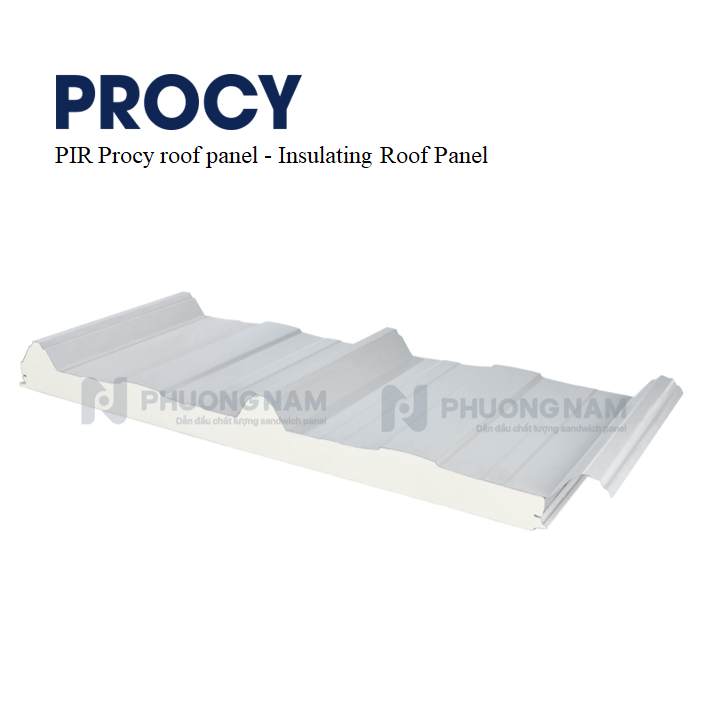

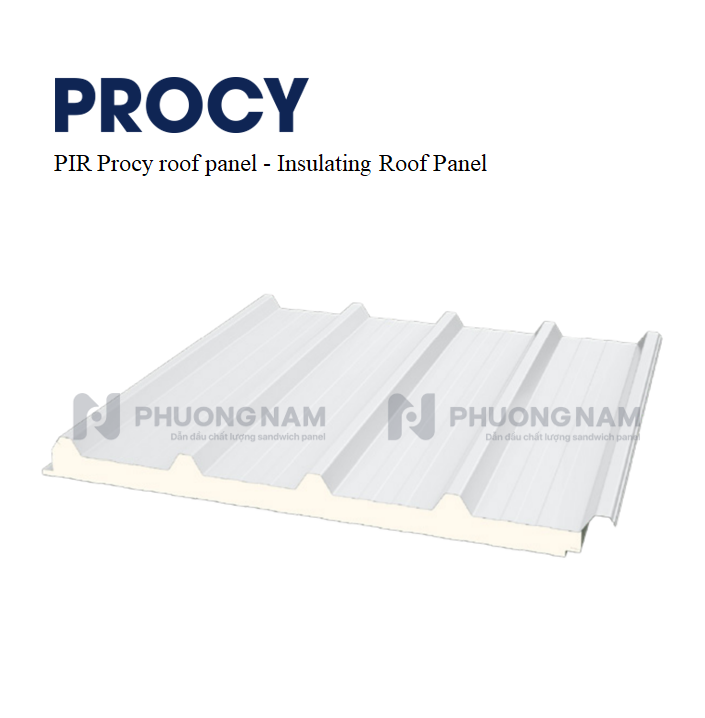

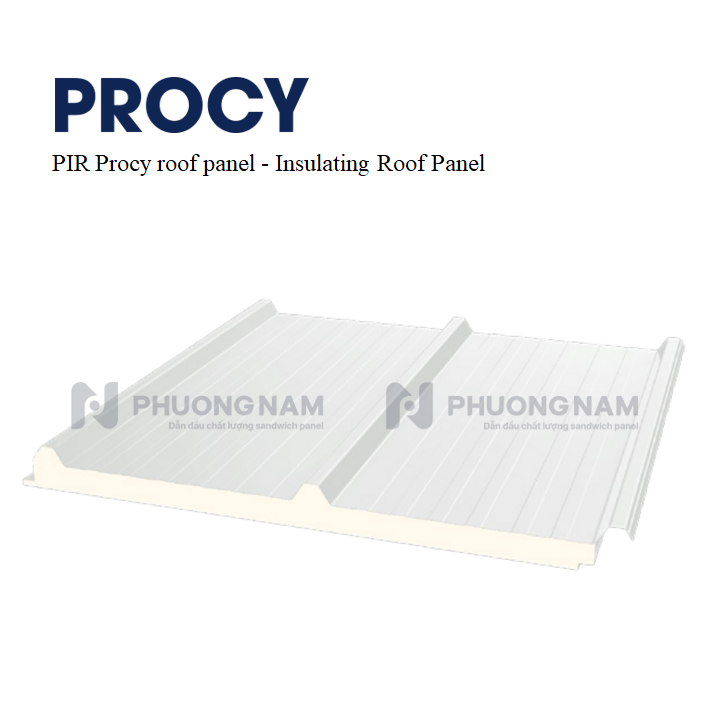

Procy Roof Panel - Insulating Roof Panel is a premium PIR sandwich roof panel, a new generation building material, composed of two faces of super durable 4-layer coated steel of Bluescope Company (Australia) and (Polyisocyanurate) PIR core on modern European technology continuous production line. 3-5 corrugation design and diverse depth, delicate and aesthetic; the surface is smooth or delicately ribbed with flexible length exactly cut according to design.
- Depth: 30/50/75/100mm
- Heat endurance: -196 to 120 Celsius
- Materials imported from: EU and U.S
CONTACT US
DESCRIPTION
Procy Roof Panel - Insulating Roof Panel is a premium PIR sandwich roof panel, a new generation building material, composed of two faces of super durable 4-layer coated steel of Bluescope Company (Australia) and (Polyisocyanurate) PIR core on modern European technology continuous production line. 3-5 corrugation design and diverse depth, delicate and aesthetic; the surface is smooth or delicately ribbed with flexible length exactly cut according to design.
Procy roof panel is applied for construction of roof panel, roofing, making anti-heat roof panel, roof insulation, Roof Panel, insulating roof panel, roof panel of industrial house, factory, factory projects, clean room, cold-storage, etc. from industry, agriculture, national defense to civil engineering. Procy Roof Panel offers outstanding effective solutions of heat resistance, insulation, soundproof of stable quality, trusted by hundreds of contractors, used for thousands of projects throughout the country.
Technical Construction
Procy Roof Panel - Insulating Roof Panel is PIR sandwich Roof Paneling sheet composed of:
- PIR (Polyisocyanurate) Foam core of BASF Group (U.S). Solid core layer, with thickness from 50mm, 75mm, 100mm; closed-cell density of 99% having effects of insulating, reducing moisture penetration and reduce the possibility of destruction.
- Two faces are shielded with super durable steel 4-layers coated by Activate technology of Bluescope with thickness from 0.45mm - 0.6mm
- Upper steel is 3-5 corrugation of 45mm high help effective anti-overflow.
- Surface of wall panel is smooth or delicately ribbed with exact length customized according to design requirement.
Features of Product
- Soundproof, insulating, anti fire spreading
- Increase rigidity for walls, ceiling.
- Easy to construct, quickly install.
- Save time of construction, save man power,
- Save frame, truss and purlin.
- High durable, aesthetic, safe for human health.
Popular colors of Bluescope Sumo for sandwich panel (*)
(*) In addition to the standard colors above, if you want to choose other colors, please contact Sales Department.
Applications of PIR Procy roof panel - Insulating Roof Panel
Procy Roof Panel - Insulating Roof Panel is applied for the roof part of construction projects, roofing production factories, food warehouses, husbandry farms, etc. The roof is insulating help indoor environment be cool, reduce power cost during operation, protect health and environment.
Factory
Cold storage
Clean room
Store house
Schools
Hospital

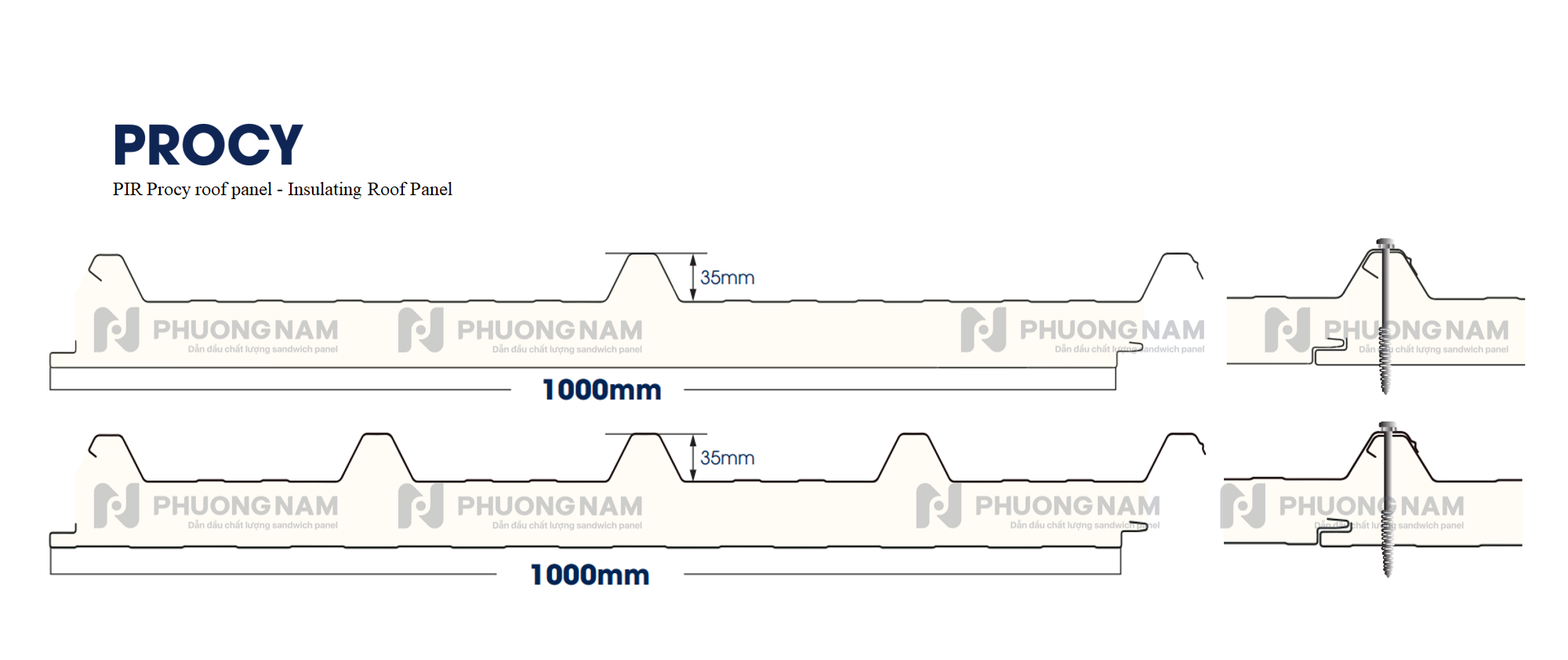

SECTION
SPECIFICATIONS
Depth:
30/50/75/100mm
Working width:
1000mm
Maximum length:
12m (16m - lân cận TPHCM)
Steel brand:
Bluescope Sumo
Standard steel thickness:
0.59mm/0.35mm
Insulating core:
PIR B1 (BASF)
REASONS TO CHOOSE THE PRODUCT
Sandwich panel have stable quality, is trusted by hundreds of contractors, used for thousands of projects nationwide
The most diverse range of products in the market with all types: Panel EPS, Panel PU, Panel PIR, Panel rockwool
The leading production line of Europe, Vietnam's largest production capacity of sandwich panel meet schedule for every projects
